• Built-in infrared filter of fixed sensor module.
• Diagnosis and checking of a suspension, measurement of a ride height.
• Built-in program for preliminary checking and analyzing a vehicle.
• Quickly handle by lifting a vehicle when adjusting caster and camber.
• Capability of suspension body diagnostics (axle offset, side offset, difference between axles, track, setting back of front and rearwheels)
• Use of a sensor for accurate compensation of position when run out.
• Use of plus monitor for convenience of control(option).
• Self diagnostics alarming the use and failureof devices.

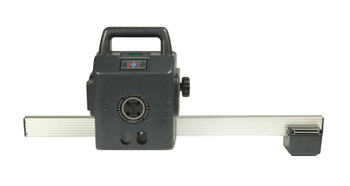

* Head
• Carper-201 Head
* Plus Monitor(Option)
• LCD monitor for operator's convenience
* Specification
Model
CARPER-201
Operating computer
Intel Pentium4
Measurement method
4Head Infrared-8Sensor
Operating system
Windows OS
Output type
Deskjet Printer
Printing device
Deskjet printer
Wheel size to apply
11"-19" Standard
20/22 inch Adapter-Option
Measuring precision
Setback
0.02 degree
Toe
0.02 degree
Caster
0.05 degree
Camber
0.02 degree
Range of precise measurement
Setback
±2.0 degree
Total Toe
±50mm
Caster
±18.0 degree
S.A.I
±18.0 degree
Camber
±8 degree
Thrust angle
±2 degree
Rated voltage
220v ± 10%, 50/60Hz
Rated Power
250W
Type of data transfer
4HEAD cable mode
Size of main body
710(L) Ⅹ 680(W) Ⅹ 1,200(H)
* Operating Screen
Focused on convenience for the user to easily select overall measuring data of a car by adjusting the 3-D screen.
Available to measure suspension data preciously by the built-in sorber measure program. (Option)
Easy to set numerals. So the user can display data on the screen at his manner.
This System is programmed that the user can easily amend and enter specifications for existing / new cars.
3D screen for helping adjustment.
When swinging wheels to measured the caster S.A.I angle, both sides of front wheels can be separately measured. The data precision is strengthened.
